Modern vehicles rely on complex electronics to function properly and protect the vehicle’s systems. The 2010 Dodge Charger, while not as electronically advanced as its later counterparts, still uses a form of network management and module communication that involves gateway-like functions. One of the key components in this structure is commonly referred to as the Security Gateway Module (SGM) or, in earlier terms, part of the Body Control Module (BCM) or Totally Integrated Power Module (TIPM). Understanding the gateway board or related network interface components in your Charger can make a big difference when performing diagnostics, programming, or troubleshooting electrical issues.
What Is the Security Gateway Module?
The Security Gateway Module serves as a firewall between your car’s internal networks and external scan tools or computers. While not fully implemented in the 2010 model year, Dodge began introducing communication control systems that manage the flow of data between systems.
The gateway ensures that only authorised devices can access sensitive functions, including:
- Engine Control Unit (ECU)
- Transmission Control Module (TCM)
- Anti-lock Braking System (ABS)
- Airbag modules
- Vehicle security and immobiliser systems
These systems use a CAN Bus (Controller Area Network) to communicate, and the gateway ensures that commands are filtered and only allowed through when they meet specific criteria.
How It Works in a 2010 Dodge Charger
In the 2010 Dodge Charger, there is no dedicated “Security Gateway Module” like in 2018 and later vehicles. However, gateway-like functions are still present and may be found integrated into the TIPM or BCM. The TIPM controls power distribution and acts as the central nervous system of the car’s electronics. The BCM manages interior electronics, door locks, and communication between various control modules. These modules work together to limit access to critical functions and prevent unauthorised changes. If you are working on the electrical system, you may experience limited access to specific data points or system responses, especially when using generic scan tools.
Common Issues Linked to the Gateway System
When something goes wrong with the system that manages communication and security, the symptoms can vary widely. Here are some issues that could point to a failing gateway or associated module:
- Failure to read certain modules via diagnostic tools
- Loss of remote key functionality or FOB issues
- Inconsistent dashboard lights or error messages
- Trouble programming a new key
- Radio or HVAC controls acting up
These problems often trace back to either the TIPM or BCM and may require deeper inspection or replacement.

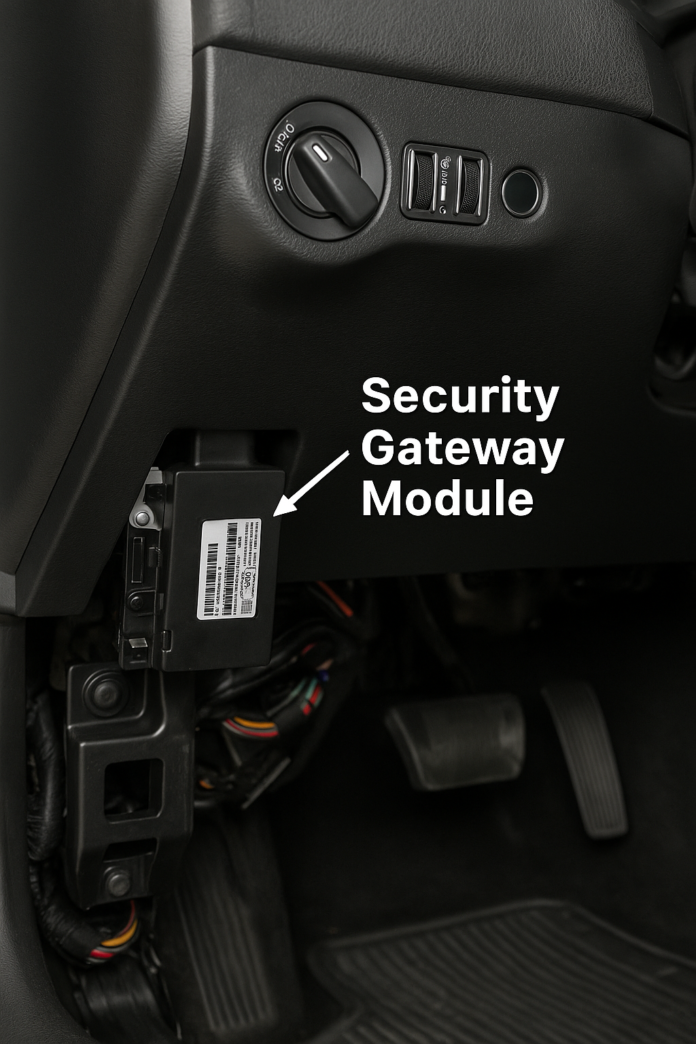

Where Is the Security Gateway Board Located?
In 2010 Chargers, look in the following areas for the primary control modules:
- TIPM – Located under the hood, typically in the fuse box near the battery. This module manages power routing and often includes relays and fuses.
- BCM – Typically found behind the dashboard, near the driver-side footwell or steering column.
- CAN Bus connectors – These may be located behind the radio, near the glove box, or along the under-dash harness.
Keep in mind that the term’ gateway board” may not appear in the factory manual, but its functions are distributed across the TIPM and BCM.
Can You Bypass It?
Bypassing the security gateway becomes more relevant for post-2015 Chargers, where a dedicated SGM blocks all non-dealer-level scan tools. In the 2010 Charger, you can often use aftermarket diagnostic tools like:
- Autel scanners
- Launch systems
- Snap-On scan tools
These typically have no problem accessing most ECUS unless a software lockout is triggered. That said, ECU tuning or key programming requires a dealership or advanced tools.
In rare cases, users may attempt to tap into a CAN bus or access modules directly. This is not recommended unless you are experienced with automotive networks, as it can cause unintended communication errors or security issues.
Replacing or Servicing the Gateway System
If diagnostics indicate a faulty TIPM or BCM (modules that contain gateway logic), replacement may be necessary. This is not a job for beginners, as it involves:
- Removing dashboard trim or fuse boxes
- Disconnecting power
- Flashing or programming new modules with VIN-specific data
- Re-learning security and immobiliser data
In most cases, professional reprogramming is needed to ensure the new module communicates correctly with the rest of the system.
Cost and Complexity
Replacing a BCM or TIPM can range from $300 to $1,200, depending on labour, programming fees, and whether the module is new or refurbished. Attempting to repair or replace these modules without proper calibration can result in:
- Failed key programming
- Disabled ignition or fuel systems
- Communication loops or voltage issues
Always confirm part numbers and compatibility before installing a replacement.
READ MORE – EG4 18k PV Force Charge Batteries from Grid: What You Need to Know
FAQs
- Does the 2010 Charger have a dedicated security gateway module like newer models?
No, but gateway functions are built into the TIPM and BCM. - Will a basic OBD-II scanner work on my 2010 Charger?
Yes. Most basic and advanced scanners can access the ECUS without bypass tools. - Where is the TIPM located?
Under the hood, usually next to the battery in the fuse box assembly. - Can I reprogram the BCM myself?
Only if you have the appropriate tools and software. Dealer or specialist reprogramming is recommended. - Are there signs my TIPM or BCM is failing?
Yes. Symptoms include error lights, random electrical issues, FOB problems, or diagnostic failures.
Conclusion:
Even though the 2010 Dodge Charger doesn’t have the highly restrictive gateway systems of newer models, it still employs a smart network of control modules that regulate access and communication. Understanding how the TIPM, BCM, and CAN Bus interact helps when troubleshooting electronics or installing custom upgrades.
Whether you’re working on diagnostics, repairs, or system upgrades, knowing the layout and logic of your Charger’s gateway systems can save you time, money, and frustration. Use proper tools, follow safety steps, and when in doubt, consult a professional technician.
